Charge ‘n Boost: Arduino IDE Programmable Powerbank

Build your own powerbank!

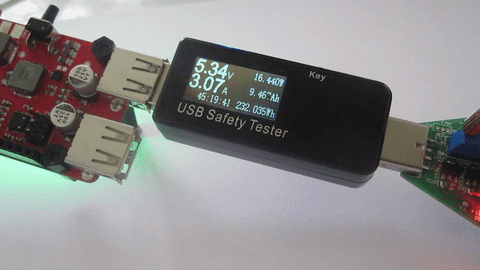

Tell it to charge at 1A, 2A or even 3A. Charge your phone. Power a Raspberry Pi. Make it shutdown. Make it wake on USB load, button press or timer. Keep it alive forever. Connect an I2C OLED display. Use the RGB leds to display capacity in color-code or simply use individual leds. Send and receive serial data/commands to and from an Arduino or Pi. Switch on or off USB powered devices. Program a torchlight. Code an RGB led charging animation… The possibilities are endless.

Features:

  • 3.2A synchronous lipo charge IC, automatic USB input rating detection, 4-14V input
  • 3.5A 5V USB boost IC (5.1V or 5.5V output)
  • Dynamic power path management: When input is connected a USB load is prioritized over charging. When input is sufficiently rated both the load and battery can be powered. When an input is insufficiently rated for current load, the battery will go into load supplement mode.
  • On-board programmable Atmega328p
  • On-board fuel gauge
  • Automatic USB adapter current rating recognition
  • BC1.2 USB controller IC on output

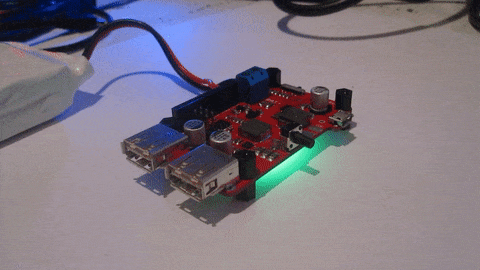

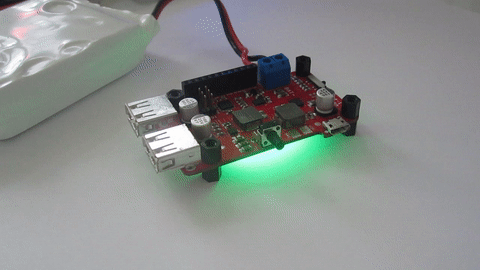

  • 1 addressable RGB led, led-data pin and 5v MOSFET switched supply pin broken out, extend by up to 1A of additional WS2812B leds
  • 1 tactile button
  • Fully featured library for Arduino IDE, a few lines of code will setup your powerbank

Program (using serial or ISP programmer or even an Arduino):

  • Max input current (500mA up to 3250mA)
  • Max charge current (500mA up to 5000mA! Anything over 3A will require active cooling)
  • USB boost output voltage: 5.1V or optionally 5.5V
  • Independently enable/disable charger IC
  • Independently enable/disable USB boost output
  • Deepsleep shutdown (45uA sleep)
  • Interrupt wake on button, USB load or INT pin
  • 3 RGB WS2812b leds, individually addressable
  • Slide switch functionality, 3 positions
  • Tactile button functionality

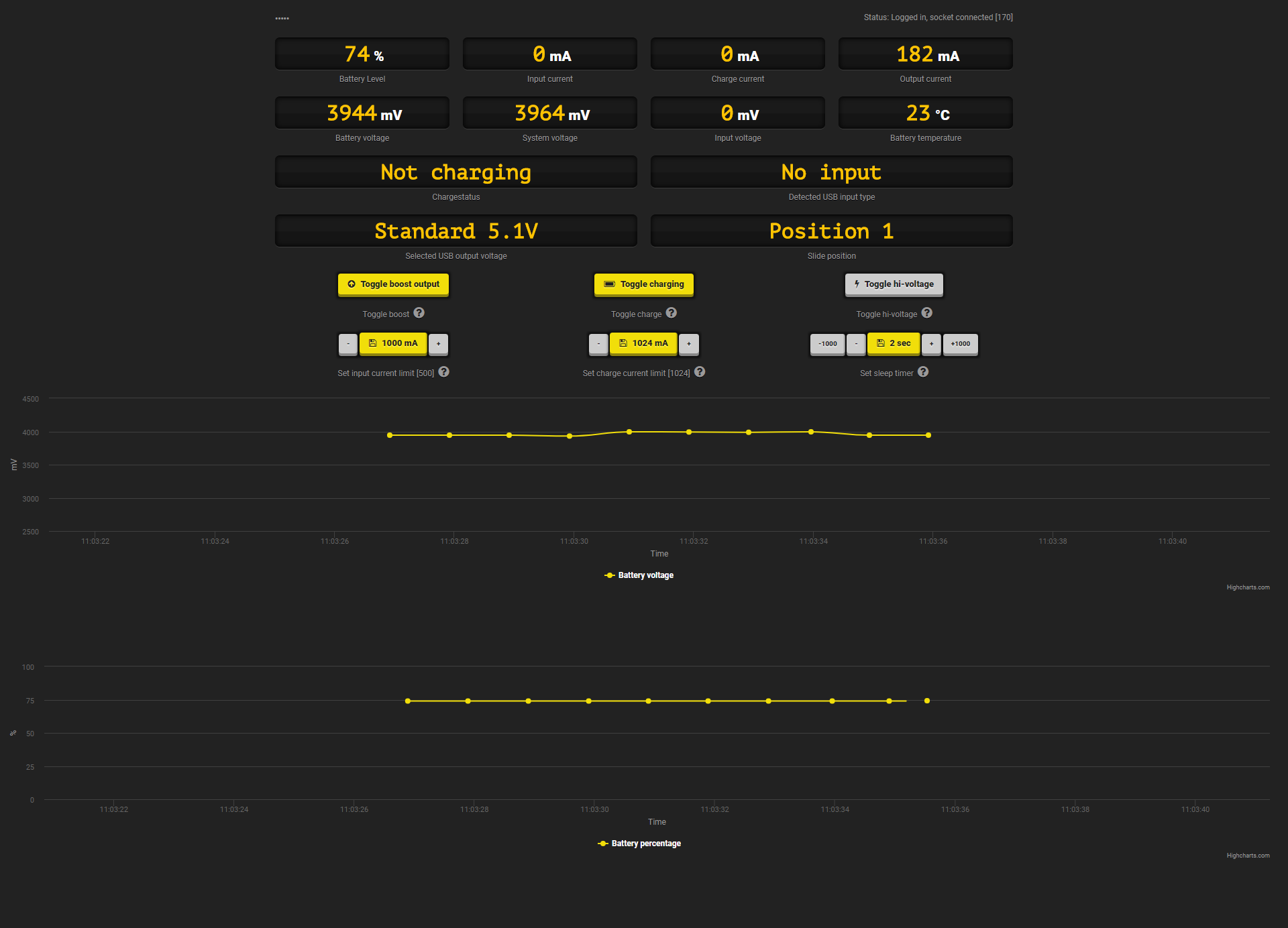

Digitally monitor:

  • Input current
  • Charge current
  • Output current
  • Input voltage
  • Charging status (precharge, fastcharge, charging done, not charging)
  • USB Input type (SDP, CDP, DCP, or High voltage adaptive fastcharge @ 9 or 12V)
  • Battery percentage
  • Battery voltage
  • Battery temperature
  • Slide switch position
  • Button press

Safety:

  • Reverse polarity battery protection
  • Automatically detect current rating USB input
  • Undervoltage battery FET disconnect
  • Overvoltage battery FET disconnect
  • Boost IC under voltage lockout
  • Battery temperature monitor, battery will disconnect on NTC over- and undertemp
  • USB output overcurrent protection
  • Thermal shutdown protection for both charge and boost IC’s
  • Watchdog timer

Broken out I/O and power:

  • SDA/SCL, attach 3V logic compatible I2C devices (OLED 0.96 display succesfully tested!)
  • Hardware Serial pins
  • Interrupt pin internally connected to button and charger IC interrupts
  • 3V linear regulator pin
  • 5V output voltage pin
  • Two GND pins
  • ISP connector
  • Reset pin with timing capacitor (connect Serial programmer with auto reset, user will need to burn Arduino bootloader through ISP)

Price

Not set yet but aiming at Kickstarter $35 – $45 pricepoint for assembled 65x40mm units. V1.0 and V2.0 have been tested succefully, V3 kinks excluded is on the way. Two ounce copper, ENIG finish.

Keep posted or check my twitter for launch day (currently waiting on final version PCB, working on video)!

Library functions

Powerbank mypb

Description

Create an instance of Powerbank class, name it anything, in this case ‘mypb’. Place outside of loop/setup.

mypb.init( int fastChargeCurrent );

Description

Enables charge IC. Enables Boost IC. Resets all charger registers to default value. Sets battery fastcharge current limit. Begins Atmega328P I2C. Sets Atmega328P ADC reference to internal 1.1V. Typically placed in setup.

Parameters

fastChargeCurrent: Set battery fast charge current limit (500 – 5000mA). fastChargeCurrent is automatically limited by detected USB input current rating and/or slide setting battery charge current limit. The lower of which is set as the limit.

Returns

None

mypb.resetWatchdog();

Description

Resets charger IC watchdog timer and re-enables charging function. Function must be called every 40 seconds (or less). Safety feature. In the unlikely event of microcontroller failure with I/O at hi-Z, charging and boosting  functions are disabled. In the event of microcontroller failure with charge-enable output LOW, charge IC will reset to standalone mode (2A charging).

Parameters

None.

Returns

None.

mypb.getInputCurrent();

Description

Gets current flowing into device.

Parameters

None.

Returns

Input current in mA (int).

mypb.getChargeCurrent();

Description

Gets current flowing into battery. Value is retrieved using BQ25895’s internal 7 bits ADC. Reading is battery charge current only, discharge current is not monitored.

Parameters

None.

Returns

Charge current in mA, 50mA resolution (int).

mypb.getBatteryLevel();

Description

Gets current battery level. Value is retrieved over I2C from fuel gauge.

Parameters

None.

Returns

Battery relative state of charge as a percentage (byte).

mypb.getOutputCurrent();

Description

Gets boost regulator (usb output) current. Current is calculated using Atmega328p internal 1.1V voltage reference and boost regulator constant current pin regulating to 1.244V at full current output.

Parameters

None.

Returns

Output current in mA (0.0 – 3500.0, float).

mypb.getBatteryVoltage();

Description

Gets battery voltage from fuel gauge over I2C.

Parameters

None.

Returns

Battery voltage in mV (unsigned long).

mypb.getVbusVoltage();

Description

Gets voltage on charger input. 7 Bits Value retrieved from charger IC over I2C.

Parameters

None.

Returns

Voltage on charger input in mV, range 2600 – 15300mV (100mV resolution, unsigned int).

mypb.getBatTemp( int betaValue, boolean setting );

Description

Gets the temperature from thermistor. Make sure the thermistor bead is placed as close to the battery as possible. Note: The charge IC will constantly monitor battery temperature, when out of temperature bounds (0° – 45° C), charge functions will cease.

Parameters

betavalue: the betavalue of the 10K NTC thermistor at room temperature (25° C). This value can be found in your thermistor’s datasheet and is used by a simplified Steinhart Hart equation to calculate temperature based on BQ25895’s voltage reading at the TS pin. setting: False for Kelvin or True for Celsius.

Returns

Temperature in degrees Kelvin or Celsius (byte).

mypb.getChargeStatus();

Description

Checks current charge status.

Parameters

None.

Returns

Returns corresponding charge status value (byte):
0 = Not charging
1 = Pre-charge
2 = Fast charging
3 = Charge termination done

mypb.getVbusInputType();

Description

Checks detected charger input type. Detection is done automatically by charger IC and stored in one of its registers.

Parameters

None.

Returns

Returns corresponding input type value (byte):
0 = No input
2 = USB CDP (1.5A)
3 = USB DCP (3.25A)
4 = Adjustable High voltage DCP (1.5A, Quickcharge)
5 = Unknown Adapter
6 = Non Standard adapter

mypb.btnPressed();

Description

Polls for button press (button is connected to hardware interrupt pin (PD3), buttonpress detect is possible without polling but will need to be coded manually).

Parameters

None.

Returns

True if button is pressed (boolean).

mypb.highVoltageMode( boolean setting );

Description

Sets boost regulator output to 5.5V instead of default 5.1V. Useful when expecting significant voltage drop at higher output current (usb contact resistance, cable resistance etc). Calculate your estimated voltage drop using this nifty calculator.

Parameters

setting (boolean): True will enable high voltage output, false will return to default 5.1V.

Returns

None.

mypb.sleepBtnWake();

Description

Forces charger, microcontroller and fuel gauge into sleep mode. Mosfet separating charger and attached battery is turned off. Charger IC is set to Hi-Z mode. Microcontroller is set to sleep mode. Fuel gauge IC set to sleep mode. Wake interrupts are attached to button press and charger interrupt. When device exits sleep mode after interrupt (button press or BQ25895 interrupt i.e. Vbus attach), a full Atmega328P reset is executed (reset after 15 ms watchdog expires), essentially restarting from start of sketch with all microcontroller registers reset. Current consumption is reduced to 45uA.

Parameters

None.

Returns

None.
